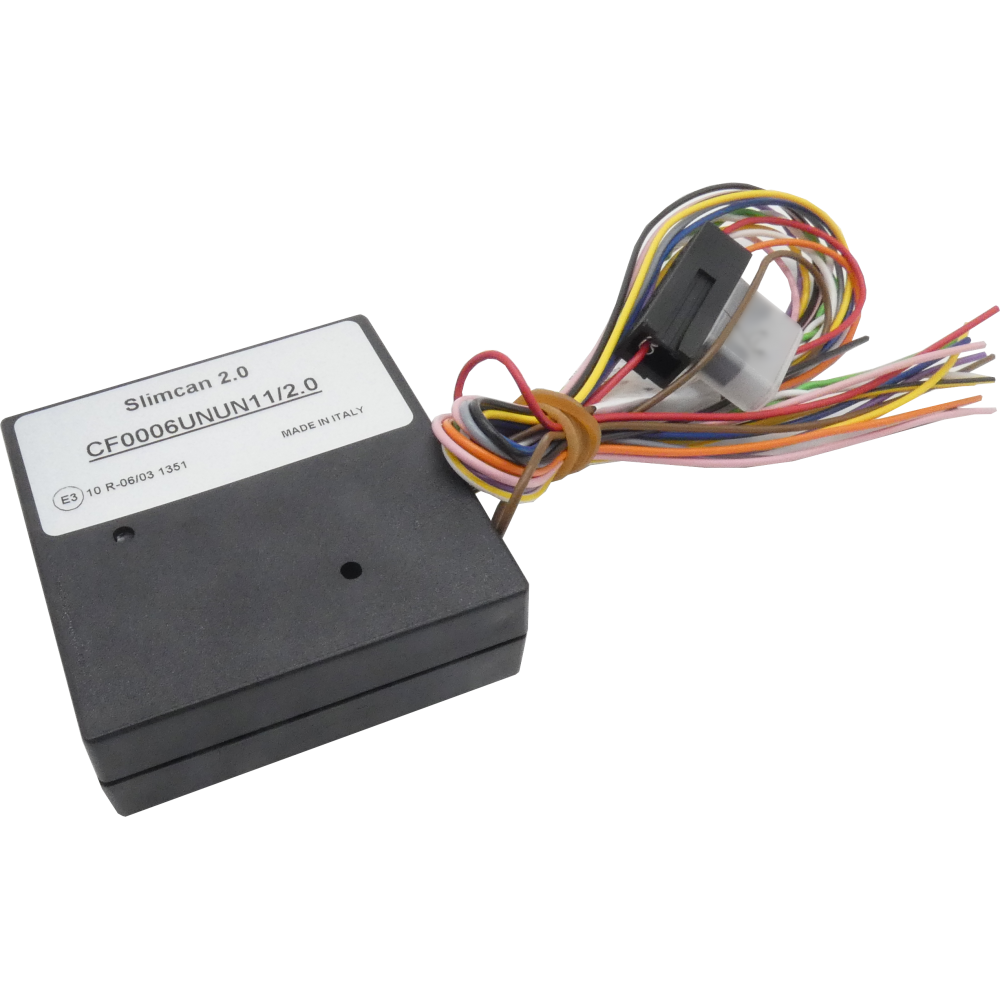

SlimCan 2.0
Overview
Next-generation CANBUS FD interface for service outputs, capable of communicating with the vehicle's CAN network, providing 8 different electrical signals on as many output lines, useful for integrati...
71.37€
Ex Tax: 58.50€
Next-generation CANBUS FD interface for service outputs, capable of communicating with the vehicle's CAN network, providing 8 different electrical signals on as many output lines, useful for integrating aftermarket accessories into the vehicle.
The 8 selectable outputs are:
- Ignition positive output PNP 12V (max 3A)
- NPN output 1 250 mA
- NPN output 2 250 mA
- Speed pulse output PNP 12V 100 mA (1kW pull-down)
- Lights on output PNP 12V 100 mA (1kW pull-down)
- Reverse gear output PNP 12V 100 mA (1kW pull-down)
- NPN handbrake output 250 mA
- NPN output 3 250 mA
Output lines 2 and 3 can also function as digital inputs (max 12V).
The functionality of the various outputs and the serial communication channel (UART) can be further customized upon customer request.
Automatic selection of vehicle CANBUS protocols
Upgradable firmware.
Flying wire harness included.
| Power Supply | |
| Current | 12 V 24 V |
| Operative Voltage | 10-30 VDC |
| Consumption in sleep mode | 0,001 A |
| Consumption in working mode | 0,06 A |
| Protocols Available | |
| Car Protocols | CANBUS CANFD |
| Upgrading | |
| Updatable Product | Yes |
| Requested Updater | Paser Updater |
Alfa Romeo
Although Paser tries to keep the information on its website constantly updated, no guarantees are given about car compatibility due to they can have equipment or electrical system different from tested by us.
-
Positive IgnitionLightsSpeed PulseReverse GearParking BrakeParking Sensors RecoveryEnabled output while car drivingEnabled output below 10 km/hEnabled output while moving below 10 km/h speedEnabled output while car driving below 10 km/h speed (enabling function by inserting reverse gear or at first ignition)Enabled output with engine ON below 10 km/h and handbrake OFFActive output over 40 Km/h with deactivation below 35 Km/hEnabled output with engine onHigh Beam outputRPM
-
Positive IgnitionLightsSpeed PulseReverse GearParking BrakeParking Sensors RecoveryEnabled output while car drivingEnabled output below 10 km/hEnabled output while moving below 10 km/h speedEnabled output while car driving below 10 km/h speed (enabling function by inserting reverse gear or at first ignition)Enabled output with engine ON below 10 km/h and handbrake OFFActive output over 40 Km/h with deactivation below 35 Km/hEnabled output with engine onHigh Beam outputRPM
-
Positive IgnitionLightsSpeed PulseReverse GearParking BrakeParking Sensors RecoveryEnabled output while car drivingEnabled output below 10 km/hEnabled output while moving below 10 km/h speedEnabled output while car driving below 10 km/h speed (enabling function by inserting reverse gear or at first ignition)Enabled output with engine ON below 10 km/h and handbrake OFFActive output over 40 Km/h with deactivation below 35 Km/hEnabled output with engine onHigh Beam output
-
Positive IgnitionLightsSpeed PulseReverse GearParking BrakeParking Sensors RecoveryEnabled output while car drivingEnabled output below 10 km/hEnabled output while moving below 10 km/h speedEnabled output while car driving below 10 km/h speed (enabling function by inserting reverse gear or at first ignition)Enabled output with engine ON below 10 km/h and handbrake OFFActive output over 40 Km/h with deactivation below 35 Km/hEnabled output with engine onHigh Beam output
-
Positive IgnitionLightsSpeed PulseReverse GearParking BrakeParking Sensors RecoveryEnabled output while car drivingEnabled output below 10 km/hEnabled output while moving below 10 km/h speedEnabled output while car driving below 10 km/h speed (enabling function by inserting reverse gear or at first ignition)Enabled output with engine ON below 10 km/h and handbrake OFFActive output over 40 Km/h with deactivation below 35 Km/hEnabled output with engine onHigh Beam output
-
Positive IgnitionLightsSpeed PulseReverse GearParking Brake
Giulietta (940)2013-2020
Giulietta (940)2010-2013
Brera (939)2005-2010
159 (939)2005-2011
156 Sportwagon2004-2007
147 (937)
2000-2010
