Jingle AVAS 2.0 - ACOUSTIC VEHICLE ALERT SYSTEM (GPS Antenna not included)

Jingle AVAS 2.0 - ACOUSTIC VEHICLE ALERT SYSTEM (GPS Antenna not included)

Overview

From 1 July 2019 is required for all zero emissions vehicles to emit an acoustic signal to report they’re moving: JINGLE AVAS is the solution!Made by Paser, JINGLE AVAS is a real ACOUSTIC VEHICLE ALER...
202.89€
Ex Tax: 166.30€
Brand:Paser
Model CF0061UNAV11
Stock Instock

Available Options


From 1 July 2019 is required for all zero emissions vehicles to emit an acoustic signal to report they’re moving: JINGLE AVAS is the solution!

Made by Paser, JINGLE AVAS is a real ACOUSTIC VEHICLE ALERT SYSTEM, able to generate an acoustic warning externally during the driving, to advise pedestrians about the car arrival.

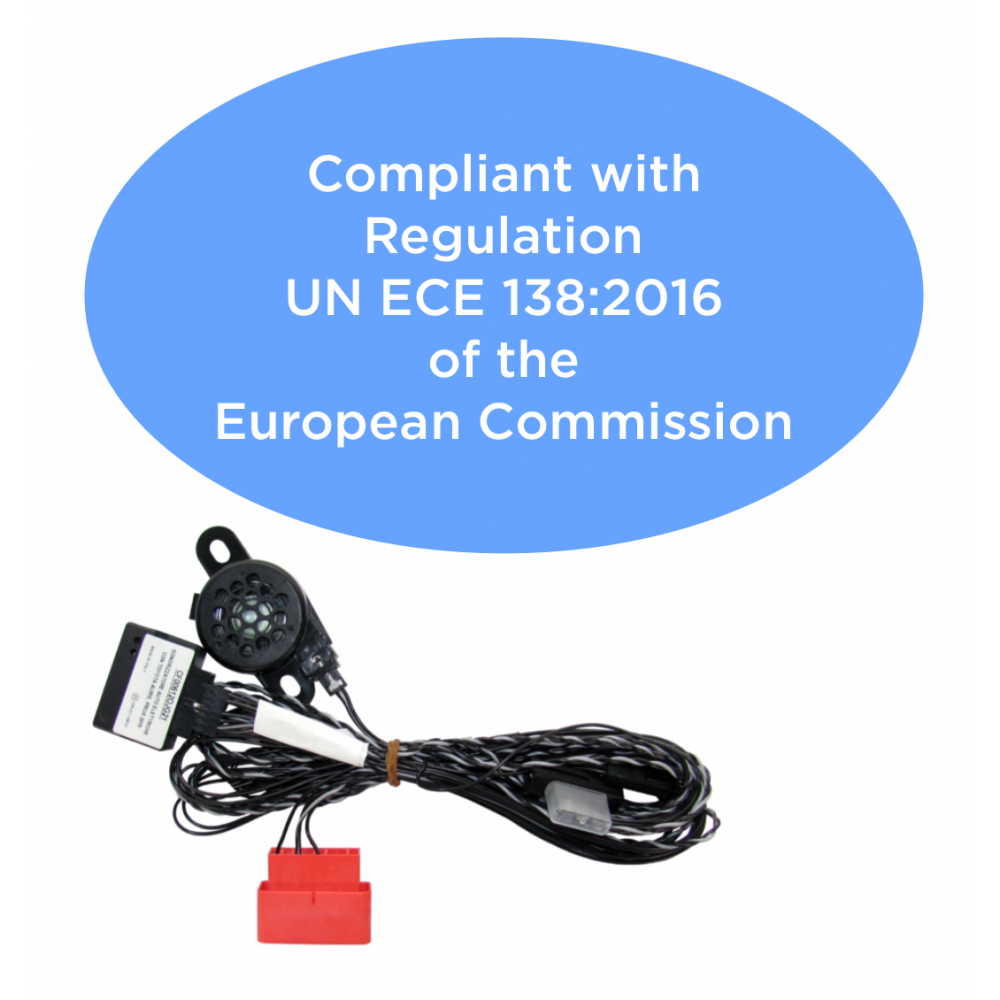

JINGLE AVAS 2.0 is compliant with Regulation UN ECE 138: 2016 of the European Commission.

Electric cars are totally silent and therefore potentially dangerous!

JINGLE AVAS 2.0 is able to replicate an acoustic warning outside of the electric vehicles compatible, making safer the driving and the interacting in the traffic.

JINGLE AVAS 2.0 beeps to warn other road users of the presence of a vehicle, thereby preserving the safety of all. It is also possible to define the audible alerts from 5 different volume levels:

  • high
  • middle
  • low
  • booster1
  • booster2


By default, module is set according to the requirements of the reference standard. Default mode is based on the canbus protocols listed in the compatibility table (next page).

JINGLE AVAS 2.0 has a number of customizable options.


- Automatic enabling at vehicles starting

- Reproduction of different tones according to vehicles different speed modes

- Automatico disabling over i 20Km/h

- Possibility of the user to enable/disable the system

- Sound level compliant with the legislation

- Function enabled also in reverse gear mode

- Unit upgradeable to new canBUS protocols

- Waterproof speaker


DEFAULT MODE

By default the module is set to work with the canbus of compatible vehicles, but if the vehicle is not listed, a simple setup can make it compatible with standard SAE-J2284 or ISO 15765 OBD diagnosis protocol.


MODE BY SPEEDPULSE WIRE

If the vehicle does not have a diagnostic canbus protocol and it is not even compatible according to the list, the unit can be set to work with the vehicle’s speedpulse (odometric) wire. in this case, identify the vehicle odometer wire and connect it to the odometric input of the module.


MODE BY GPS Paser ANTENNA

If the vehicle is not listed in the compatibility list, nor compatible with the diagnostic canbus and it is not eqipped with and odometer wire, you can use the module by connecting it to the GPS Paser antenna (supplied separately).

Audio
Decibel about 80 dB
Sound Frequency Acute

Medium

Severe (default)
Connection
OBD Yes
Plug&Play Yes
Power Supply
Absorption with enable sound 400 mA
Operative Voltage 10-16 VDC
Consumption in sleep mode 2,5 mA
Audi Audi
    Etron (MK1)
    2019-2020
