Lorry Parking Sensors

Lorry Parking Sensors

Overview

LORRY PARKING SENSORS is the new reverse gear parking distance control system designed for Lorries and commercial vehicles, developed by Paser. LORRY PARKING SENSORS is equipped with a ULTRASONIC tech...
311.71€
Ex Tax: 255.50€
Brand:Paser
Model CF0049BALO11
Stock Instock

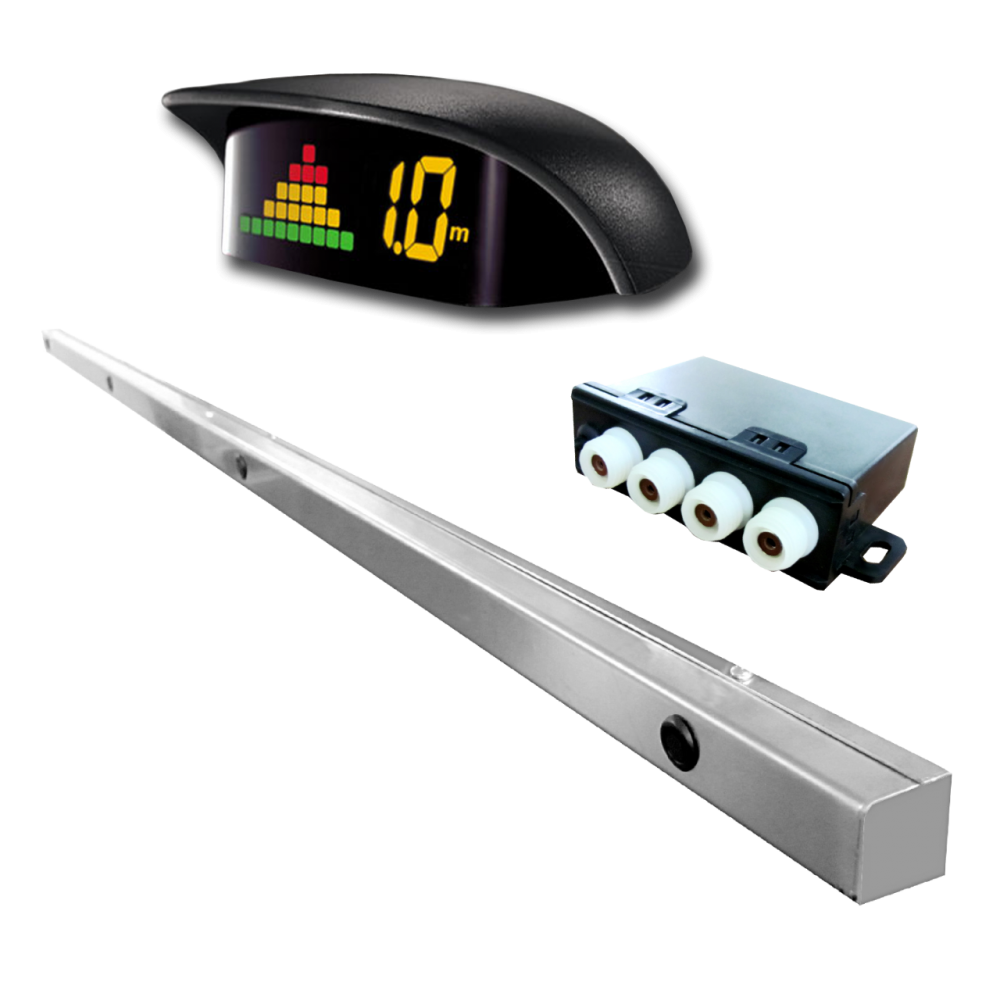

LORRY PARKING SENSORS is the new reverse gear parking distance control system designed for Lorries and commercial vehicles, developed by Paser. LORRY PARKING SENSORS is equipped with a ULTRASONIC technology, that allows to detect and communicate through audible warning buzzer and through visual notification by display the proximity to a possible obstacle encounter during the reverse gear maneuver. LORRY PARKING SENSORS highlights both the distance in meters, and the progressive increase of the hazard with the approach to the obstacle. LORRY PARKING SENSORS operates a detection of a minimum of 20 cm to a maximum of 2 meters and 50 cm away from any obstacles. LORRY PARKING SENSORS is activated when the reverse gear is on and turns off when you remove the reverse gear. LORRY PARKING SENSORS main components are pre-mounted and cabled.

Audio
Decibel Buzzer: 70 - 90 dB
Parking Sensors
Caps Diameter 17mm
Communication Wireless
Detection accuracy 0,3 m - 2,5 m
Number of Caps 4
Working Temperature Range - 40° C + 80° C
Power Supply
Operative Voltage 24 V +/- 2 V
Consumption in sleep mode 0 A
Consumption in working mode Central unit: 0,035 A +/- 0,005 A

Display: < 0,20 A

Brochures
Brochure Lorry Parking Sensors - Vers. 3

Download

Instructions
Instructions Lorry Parking Sensors - Vers. 1.0

Download
